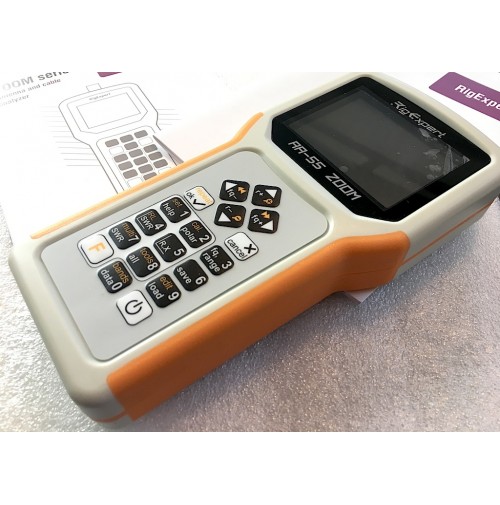

RigExpert AA-55 ZOOM Analizzatore d'antenna da 0 a 55MHz COLOR

DESCRIZIONE:

- Ad alta velocità;

- Misurazioni estremamente accurate;

- Display eccezionalmente grande e luminoso;

- Tastiera raffinata;

- Funzionalità estese

RigExpert AA-55 ZOOM – Specifications

Frequency range: 0.06 to 55 MHz

Frequency entry: 1 Hz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical modes,
1 to 10 in chart modes

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical modes,
0…1000, -1000…1000 in chart modes

Display modes:
–    SWR at single or multiple frequencies
–    SWR, return loss, R, X, Z, L, C and phase angle at single frequency
–    SWR chart, 100 points
–    R, X chart, 100 points
–    Smith chart, 100 points
–    Return loss chart, 100 points
–    Cable tools (loss and characteristic impedance)

Optional open-short-load calibration.

RF output:
–    Connector type: UHF (SO-239)
–    Output signal shape: square, 0.06 to 55 MHz
–    Output power: +13 dBm (at 50 Ohm load)

Power:
–    Two 1.5V alkaline batteries, type AA
–    Two 1.2V Ni-MH batteries, type AA *
–    Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
–    When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
–    320×240 color TFT display
–    6×3 keys on the water-proof keypad
–    Multilingual menus and help screens
–    USB connection to a personal computer

Dimensions: 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 310 g (10.9 Oz) w/o batteries

Warranty: 2 years

GTIN-13: 4820185420099

RigExpert AA-55 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.
